Direct Drive,Post Bed,Single Needle Compound Feed Sewing Machine

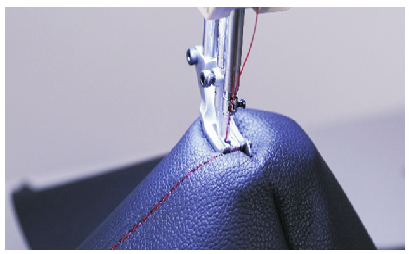

Application: three dimension material topstitch process for sofa and car interiors.
Quotation
  • Model

¥ 0.00 ¥ 0.00 0.0 CNY

¥ 1.00

此组合不存在。

添加到购物车

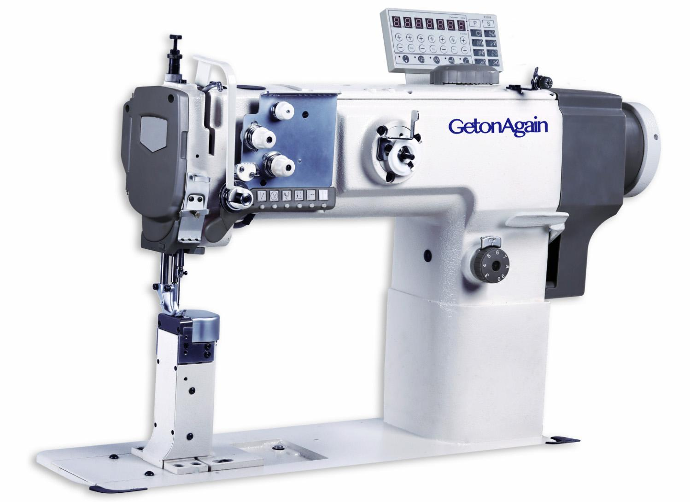

Model: GOA-1730B-7

Performance:

1. It's equipped with auto trimming, auto back tacking, pneumatic presser foot lifting, integrated LED light, free handle bobbin winder and self-locked stitch length dial, make the daily sewing more efficient.

2. Extra large operation space and right side post bed are convenient for sewing curved material.

3. When the sewing reaches the position between up and down step, pressing the DL switch can effectively reduce dense needles, broken thread, broken skin problem.

4. Equipped with horizontal large hook, can sew maximum thread of 9 strands nylon.



型号 Model

GOA-1730B-7

送料方式 Feeding system

交替压脚、送布牙和机针综合送料

Alternating presser foot, feed dog and needle feeding

最高缝速 Max sewing speed

2000 针/分钟 2000 s.p.m.

柱高 Height of post bed

160mm

线芯直径 Shuttle diameter

φ26mm

适用机针 Applied needle

DPx17#18-#23

适用缝线 Thread size

最粗9股（13#） Maximum thread 9 strands nylon

最大针距 Max stitch length

9mm

最大内外压脚交替量 Max alternating presser foot

6.5mm

最大抬压脚高度 Max presser foot lifting height

16mm

自动剪线装置 Auto trimming

√

自动倒缝装置 Auto back tacking

√

自动抬压脚 Presser foot lifting height by air

√

DL功能 DL function

√

操作空间 Operation space

335 x 260mm

Direct drive,single needle compound feed sewing machine
