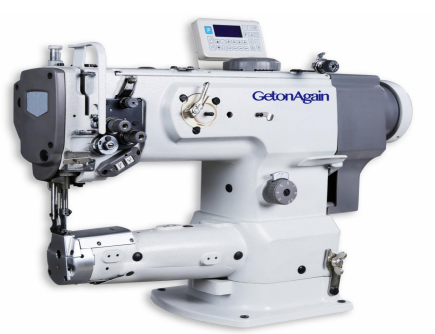

Direct drive cylinder bed, single needle compound feed sewing machine

It's suitable for bags, filter bags, football and any tube shape products, or small material sewing.
Quotation
  • Model

¥ 0.00 ¥ 0.00 0.0 CNY

¥ 1.00

此组合不存在。

添加到购物车

Model: GOA-1341B-7

Features:

1. Integrated safe and sensitive direct drive servo motor and pneumatic controller components, more stable independent control box.

2. Automatic functions like auto trimming, auto back tacking, auto oil supply and pneumatic presser foot lifting, make daily sewing easier and more efficient.

3. Powerful and effective feeding system with alternating presser foot, feed dog and needle feeding.

4. It can adjust instantaneously internal and external presser foot alternating amount by shortcut button, which is helpful to sew various thickness of different fabrics.

型号 Model

GOA-1341B-7

送料方式 Feeding system

交替压脚、送布牙和机针综合送料

Alternating presser foot, feed dog and needle feeding

最高缝速 Max sewing speed

2500 针/分钟 2500 s.p.m.

线芯直径 Shuttle diameter

φ26mm

筒径 Diameter of cylinder

80mm

适用机针 Applied needle

DPx17#18-#23

最大针距 Max stitch length

9mm

最大内外压脚交替量 Max alternating presser foot

6.5mm

最大抬压脚高度 Max presser foot lifting height

16mm

自动剪线装置 Auto trimming

√

自动倒缝装置 Auto back tacking

√

自动供油 Auto oil system

√

自动抬压脚 Presser foot lifting height by air

√

DL功能 DL function

√

操作空间 Operation space

255 x 103mm
