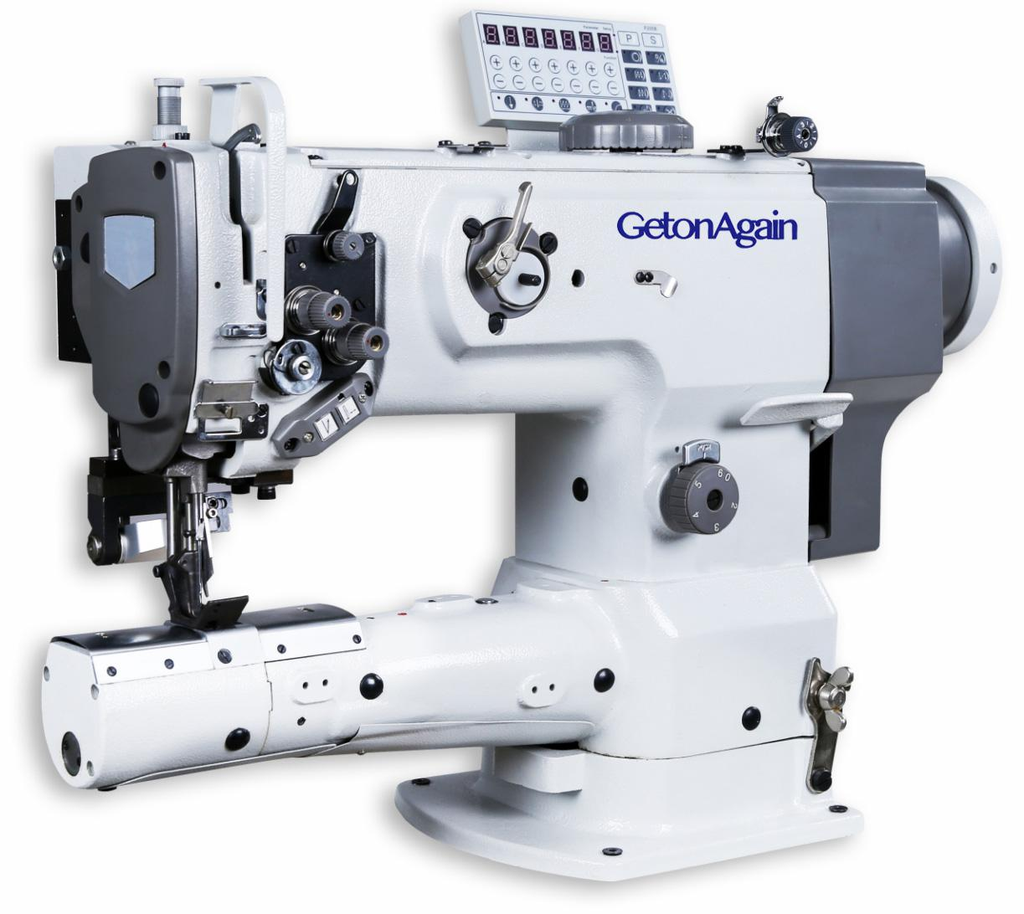

Direct Drive CylinderBed Type on- off Right Cutting Compound Feed Sewing Machine

Application: sewing of car mats, cylindrical or small materials requiring edge trimming.

Model: GOA-1341BVF

Features:

1. Optimized design of left hook and right cutter on the basic of cylinder compound feeding, it realize the edge trimming when sewing material.

2. It can adjust the alternating amount of presser foot by manual through the knob.

3. The knife can be switched on or off in product process by shortcut button.

4. With the practical functions of auto back tacking, pneumatic presser foot lifting, auto oil supply.

5. For standard needle gauge set cutting width 5mm.

型号 Model No.

GOA-1341BVF

送料方式 Feeding system

交替压脚、送布牙和机针综合送料

Alternating presser foot, feed dog and needle feeding

最高缝速 Max sewing speed

2000 针/分钟 2000 s.p.m.

筒径 Diameter of cylinder

80mm

线芯直径 Shuttle diameter

φ26mm

适用机针 Applied needle

DPx17#18-#23

适用缝线 Thread size

最粗9股（13#） Maximum thread 9 strands nylon

最大针距 Max stitch length

6mm

最大内外压脚交替量 Max alternating presser foot

6.5mm （旋钮调节）Manually adjusted by knob

最大抬压脚高度 Max presser foot lifting height

16mm

切刀装置 Edge trimmer

√

自动供油 Auto oil system

√

自动倒缝 Auto back tacking

√

自动抬压脚 Presser foot lifting height by air

√

操作空间 Operation space

255 x 103mm
